Pro-Ject Debut Carbon EVO
Ny uppdaterad version av Pro-Jects mest populära skivspelare.
Refined in every aspect.
Suspension
Improved motor suspension
The Debut Carbon EVO features our new designed motor suspension. We have improved the old design to consistently reduce the vibrations better than before.
Damped & height adjustable
The new Debut Carbon Evo stands on three height adjustable damped aluminium feet to guarantee the perfect stand.

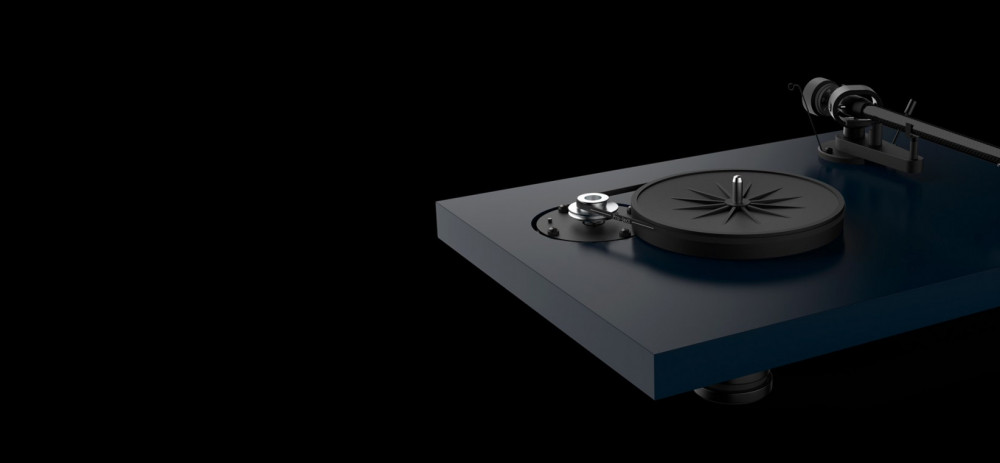

1,7 kg Platter
Heavy steel and TPE damped
We added a TPE (thermoplastic elastomer) ring on the inside of the platter. The result is an even quieter and noiseless operation with less wow and flutter.
33/45/78 RPM
High precision motor control

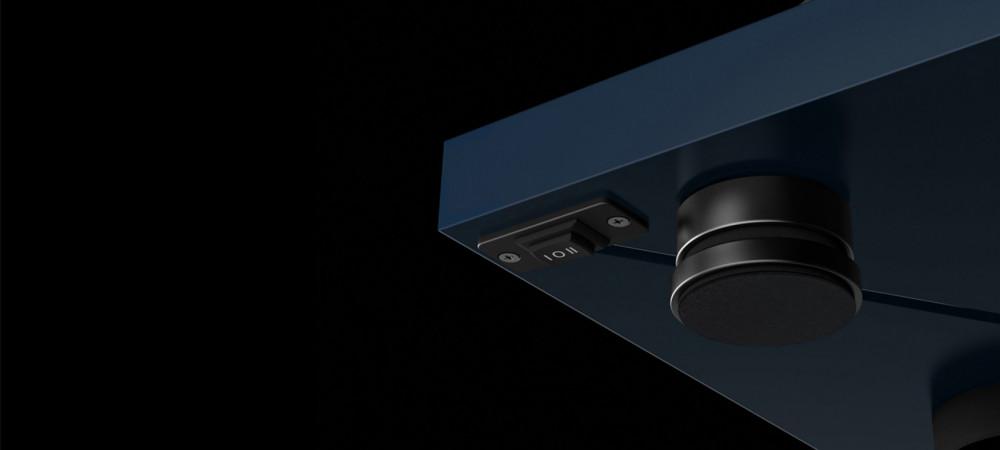

The rocker switch on the bottom of the turntable allows you to change speeds with the push of only a single button.
Technical Specifications
Nominal speeds
33/45 r.p.m.. *** 78 r.p.m. optional
Speed variance
33: ±0.50% 45: ±0.60%
Wow and flutter
33: ±0.17% 45: ±0.15%
Signal to noise
68dB
Effective tonearm mass
6g
Effective tonearm length
8.6 " ( 218.5 mm)
Overhang
18,5 mm
Power consumption
4 W/ 0 W in Stand-By
Outboard power supply
15V / 0 – 0.8 mA DC (set at 0.5 mA), universal power supply
Dimensions (W x H x D)
415 x 118 x 320 mm, dust cover open 415 x 365 x 405mm
Weight
5,6 kg
Dimensions packaging (W x H x D)
488 x 235 x 393 mm
Weight incl. packaging
8.0kg
-----
MM-Cartridge Ortofon 2M Red:
Frequency range
20-22.000Hz
Channel separation
22dB/1kHz
Output voltage
5.5mV
Recommended load impedance
47kohms/amplifier connection – MM-input
Compliance/stylus type
20µm/mN – elliptical
Recommended tracking force
17.5mN
Weight
7.2g
Modell
Debut Carbon EVOVarumärke
