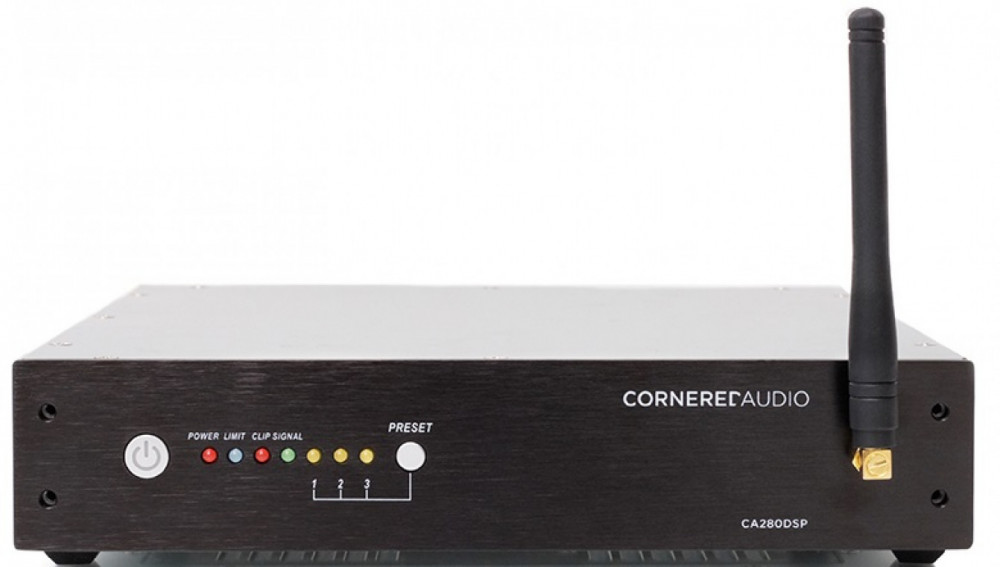

Cornered Audio CA280DSP

2 kanals slutsteg på 2x140w (4ohm). DSP, monobryggning, 100V läge. Styrning via USB, RJ45 eller wifi. PC mjukvara ingår. C4 och Creston styrbart. Slutsteg med avancerade möjligheter. Klarar både 2-8 ohm, och kan ställas om till 70/100volt.

DSP med avancerade möjligheter att justera ljudet med web gränsnitt.

Förinställda presets för Cornered:s högtalare.

Länkbar - du kan köra upp till 32 slutsteg i serie.

The Amplifier

…is an understatement. In addition to being a highly efficient amplifier, CA280DSP features a very advanced DSP, automated room EQ, sound masking and high/low impedance mode. All easily accessed remotely.
Designed for AV installers and integrators, CA280DSP is packed with features and easy to use. It offers excellent sound quality in a compact housing and comes with full protocols for third party integration.

Simply access the amplifiers Wi-Fi network. Load settings for your Cornered loudspeakers, Ask the amp to sweep the room and add room EQ. Set delay, RMS Compression, Dynamic EQ or even Sound Masking if needed. Run the speakers in high or low impedance - or run one channel with a line of 100V speakers and connect an 8 ohm subwoofer to the other channel. The choice is yours.

The CA280DSP will take it from there and with auto on/off and a fan-free design, chances are you will never see it again.

The amplifier section uses a very efficient switch mode power supply and two Class D output stages with ultra-low distortion and a full set of circuit protections including over-current, over/under voltage, output, DC. Furthermore, an efficient heat dissipation system and over-heat protection ensures uncompromising reliability.

The top grade 48 kHz/24 bit DSP engine is capable of sophisticated loudspeaker processing. There are 5 EQ’s on the input channels and 30 EQ’s on the output channels. Each band can be switched to Bell, Lo/Hi-Shelving with variable Q. The HP/LP filters offers slopes from 6dB/Octave up to 24dB/octave including Bessel, Butterworth and Linkwitz-Riley.

With the built-in Auto EQ, CA280DSP can sweep the room and set the EQ automatically, fast and efficiently. And with 2x140W @ 4ohm or 8ohm or 1x280W for 70V/100V Direct Drive, the output-to-size ratio is excellent.
CA280DSP excels in performance, ease of use and reliability and is the perfect fit for the Cornered loudspeakers.

FEATURES

2x2 matrix
Top grade 48 kHz/24 bit DSP
Automated room EQ
Dynamic loudness
Limiter
RMS compressor
Delay in time or distance
White/pink noise generator
Sound masking
Auto on/off
Energy Star compliant
No fan
Network Connection & Control
USB, RJ45 or Wi-Fi connection for system setup, monitoring and control via remote PC software (included)
Simultaneous control of up to 32 units via PC software
Pre-sets for all Cornered loudspeakers
Connection for remote volume control (GPIO)

Specifications

Number of Channels: 2
Max Output Power (4&8 ohm) 2x140W
Max Output power (Bridged) 1x280W
Max Output power (100V) 1x280W
Output Circuitry: Class D
THD+N: <0.003%

Signal To Noise Ratio: >105 dB
Frequency Response 20-20kHz±0,1dB
Power Supply: Universal
Operating Range: 110-240V Mains
Stand-By 0,25 watt
Maximum Input/Output Level: +12 dB
Connections: Phoenix with link on input
Dimension: 1U half rack space
(HxWxD): 44x220x234mm
Weight: 2,54 kg
